Wismec Reuleaux RX2/3 Box MOD

Add to Cart


SALE PRICE: $49.99
OUR PRICE: $59.99
MSRP: $79.99
You save $30.00


SKU:220012 ,Availability: ,Width: ,Height: ,Depth:


Ships within 24 to 48 hours (see our shipping policy for details)


30-Day Limited Warranty. See warranty section for details.


30-Day Limited Warranty. See warranty section for details.

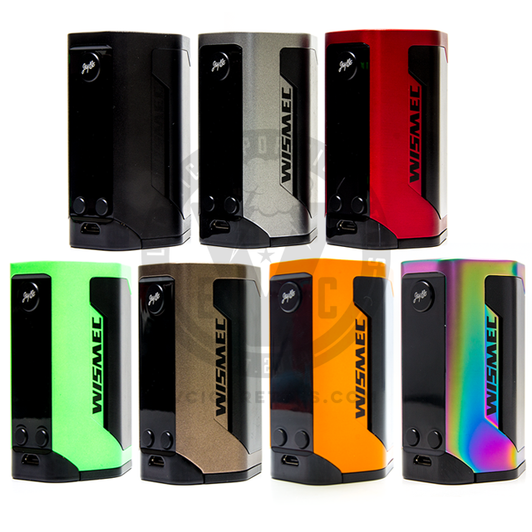

Reuleaux RX 2/3 Box MOD || Wismec

Jaybo, the design guru behind many of the critically acclaimed devices and atomizers currently on the market has returned with yet another innovative device, the Reuleaux RX 2/3 Box Mod!  This is the third iteration of the exceedingly popular Reuleaux box mod, which now features the ability to either run on 2 (171W max) or 3 (250W max) 18650 batteries. This gives us vapers that are accustomed to using a pair of batteries a chance to now enjoy the unique look and features of a Reuleaux RX Box Mod without having to buy 3 new batteries to marry together. An additional back cover with integrated circuitry seamlessly introduces a place in the circuit for a third battery cell; the third battery is placed into the cover and the cover is installed as usual, a truly effortless step towards an additional 79W and 33% longer battery life. Covers are easily released with the push of a button at the bottom of the mod.

A large display takes up a big portion of the face and you can add a custom logo to personalize your Reuleaux RX 2/3 by connecting it to a computer using the Micro-USB charge port. Connecting it also allows you to update the box mod's firmware to keep it up to date for better efficiency and possibly even new features. Most atomizers fit flush atop the mod with the help of a spring-loaded 510 connection. In addition to handling the typical variable wattage duties of a mod, the Reuleaux RX 2/3 Box Mod also has full temperature control capabilities with Ni200 (Nickel), Ti (Titanium), and SS316L (Stainless Steel) wire. There is also a TCR Mode which allows you to maintain temperature control even when using wire that may not be inherently compatible with the device, such a different grade of stainless steel wire than the typical SS316L wire. As far as aesthetics go, we all know by now how gorgeous the lines and color schemes are, the only question is which of the 4 colorways are you going to get?


  • Constructed using Stainless Steel / Zinc Alloy
  • Accepts Two (2) or Three (3) 18650 Batteries
    • Modular Battery Bay
      • Equipped with Locking Mechanism
  • Power Mode:
    • Two Cells:
      • Wattage Range: 1W - 171W
      • Max. Voltage: 6V
    • Three Cells:
      • Wattage Range: 1W - 250W
      • Max. Voltage: 9V
    • Resistance Range: 0.1 - 3.5 ohm
    • Max. Current: 50A
  • Temperature Mode:
    • Temperature Range: 100°C - 315°C (200°F - 600°F)
    • Resistance Range: 0.05 - 1.0 ohm
      • Lockable
    • Supports:
      • Nickel (Ni200)
      • Titanium (Ti)
      • Stainless Steel (SS316)
      • TCR
  • Preheat Function
  • 0.96" OLED Display
  • Micro-USB Port
    • Front-Mounted
  • Updatable & Customizable Firmware
  • Gold-Plated Spring-Loaded Contacts
  • Stainless Steel 510 Threading
  • Safety Protection Suite:
    • Reverse Polarity
    • No Atomizer
    • Low Resistance
    • Short Circuit
    • Temperature Alert
    • 10 Second Cutoff
    • Weak Battery
    • Low Power
    • Battery Imbalance
  • Dimensions:
    • 40.2mm x 88.7mm x 34.5mm (2 Cells)
    • 40.2mm x 88.7mm x 50.1mm (3 Cells)

Box Contents

  • 1x Wismec Reuleaux RX 2/3 Box MOD
  • 1x 3-Cell Battery Cover (pre-installed)
  • 1x 2-Cell Battery Cover
  • 1x Micro-USB Cable
  • 1x User Manual
  • 1x Warning Card

IMPORTANT NOTE:  Understanding how to handle and care for Lithium type batteries is very important and should always be practiced.  Lithium type batteries are very sensitive to charging characteristics and may explode or flame if mishandled.  DO NOT charge your batteries overnight or while unattended for a prolonged period of time!  Always charge your batteries in a fire-proof surface/area and DO NOT expose them to high temperatures (e.g. inside your car).  DO NOT expose the battery's terminals to metal objects or immerse in water/liquid.  We are not responsible for any damage if there is any misuse, abuse or modification of the batteries and/or chargers in any shape or form (including pack making).  Furthermore,  Electric Vapor Cigarettes LLC (a.k.a. will not be held responsible or liable for any injury, property damage, or defect that is caused by misuse, abuse or modification of Lithium batteries and/or chargers.
